PM8019 IC
Out of Stock

PM8019 IC

4.0 (12 reviews)

As low as

Rs 0.00

Worldwide shipping · Cash on Delivery

Quantity
Unit price Rs
Quantity
Total Rs
Ask on WhatsApp
Seller: Iqbal GSM

Product Details

====================================================================================================

           QUALCOMM PM8019 / PM8019 OVV BASEBAND RF PMIC REPAIR & REWORK GUIDE

====================================================================================================

1. PRODUCT IDENTIFICATION & HARDWARE SPECIFICATIONS:

----------------------------------------------------------------------------------------------------

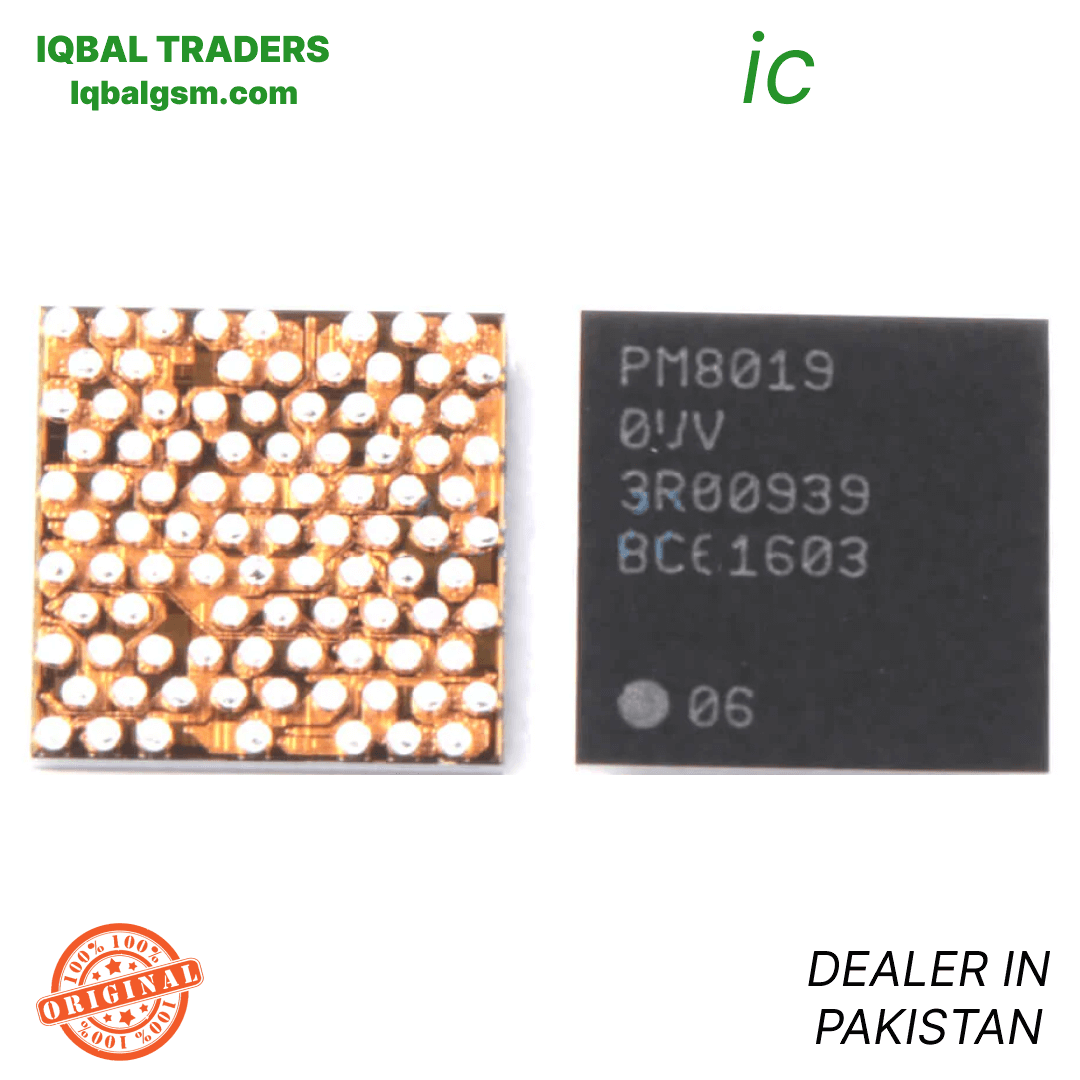

- Marking Code on Silicon:        PM8019 (Laser Sub-code: PM8019 OVV)

- Schematic Reference:            U_PMICRF (Apple Schematic Designation)

- Silicon Manufacturer:           Qualcomm Technologies, Inc.

- Package Form Factor:            94-Pin Wafer-Level Chip-Scale BGA (94-Ball WLCSP)

- Functional Role:                Baseband Power Management IC (BB PMIC / Small Power IC)

- Companion Baseband Modem:       Qualcomm Gobi MDM9625M LTE Modem (U_BB_RF)

- Companion RF Transceiver:       Qualcomm WTR1625L Transceiver & WFR1620 Receive Diversity

- Input Operating Rails:          PP_VCC_MAIN / VPH_PWR (3.7V to 4.35V DC)

- Regulated Output Domains:

  * Synchronous Step-Down Buck Converters:

    - VDD_CORE (Modem Digital Core Supply): ~0.95V – 1.15V Dynamic Voltage Scaling.

    - VDD_MEM / LPDDR: 1.2V clean supply for baseband memory.

  * Ultra-Low Noise Linear LDO Regulators:

    - Precision supply for RF Transceiver analog and PLL sections (1.05V, 1.8V, 2.8V).

    - Voltage supplies for SIM interface (VSIM 1.8V / 3.0V), GPS LNA, and Antenna Switch Modules (ASM).

2. COMPATIBLE SMARTPHONES & LOGIC BOARDS:

----------------------------------------------------------------------------------------------------

- Apple iOS Devices:

  * iPhone 6:      Models A1549, A1586, A1589

  * iPhone 6 Plus: Models A1522, A1524, A1593

  * iPad Air 2 / iPad mini 3 / mini 4 (Cellular / LTE editions)

- Qualcomm Android Devices:

  * Samsung Galaxy Note 4 (Snapdragon LTE variants: SM-N910P, SM-N910A, SM-N910V, SM-N910F)

  * Selected LTE devices from Xiaomi, Oppo, and Vivo based on Snapdragon 800 / 801 / 805 platforms.

3. TYPICAL BOARD-LEVEL FAULT SYMPTOMS:

----------------------------------------------------------------------------------------------------

- Endless "Searching..." / "No Service" on iPhone:

  * Status bar displays continuous "Searching..." even without a SIM card inserted.

  * Navigating to Settings -> General -> About reveals "Modem Firmware" is blank/empty.

  * Dialing *#06# on phone keypad fails to pop up the IMEI number.

- iTunes Restore Error 1 / Error -1:

  * During iOS restore or update in iTunes/3uTools, the progress bar stalls at ~70%–80% (baseband write phase)

    and fails with Error 1 or -1 because the baseband CPU cannot communicate with PM8019.

- Full System Dead (PP_VCC_MAIN Short to Ground):

  * Severe internal breakdown of PM8019's high-side power MOSFET pulls the main 4.0V battery rail

    (PP_VCC_MAIN / VPH_PWR) directly to ground (0.000V in diode mode), tripping the bench power supply.

- Standby Current Leakage & High Battery Drain:

  * Device discharges battery rapidly in standby with noticeable heat radiating through the baseband shield

    can due to a partially damaged internal LDO regulator.

4. SYSTEMATIC MULTIMETER TESTING & DIAGNOSTICS:

----------------------------------------------------------------------------------------------------

A. Cold Testing (Diode Mode Check - Board Powered Off):

   1. Place multimeter in Diode Mode. Connect RED probe to motherboard GND shield:

      - Main Input VCC_MAIN Capacitor (C3203_RF / C3204_RF on iPhone 6): Normal ~380mV – 480mV.

      - Modem Core Inductor L3201_RF: Normal ~240mV – 320mV. Must NOT read 0.000V.

      - Transceiver Power LDO Caps: Normal ~420mV – 600mV.

      - SIM Power Rail (PP_L13_PMICRF_1V8): Normal ~450mV – 550mV.

   2. Short-Circuit Isolation:

      - If PP_VCC_MAIN reads 0.000V, inject 3.8V DC (limited to 2.5A) with rosin vapor or a thermal camera.

        If PM8019 glows white instantly, lift the IC to clear the short.

B. Live Operating Voltage Check (Hot Testing):

   1. Power on handset with stabilized DC bench supply:

      - Verify 4.0V PP_VCC_MAIN is reaching the input capacitors surrounding PM8019.

      - Measure Baseband Core inductor (L3201_RF): Must measure stable 1.05V DC during bootup.

      - Measure 1.8V VIO/LDO lines feeding the WTR1625L transceiver.

   2. If input 4.0V is present but all buck inductors and LDOs output 0.0V, inspect the BB_PMU_RESET

      line or replace PM8019.

5. SOLDERING, REBALLING & REWORK SPECIFICATIONS:

----------------------------------------------------------------------------------------------------

- Extreme Thermal Caution:

  * On iPhone 6 / 6 Plus logic boards, PM8019 (U_PMICRF) is situated directly opposite or adjacent to the

    sensitive Baseband CPU (U_BB_RF / MDM9625M). Excessive heat will bridge the solder balls under the

    underfilled Baseband CPU, permanently damaging the board.

  * Always use high-density thermal Kapton tape and heavy copper/aluminum heatsink coins over the Baseband CPU.

- IC Desoldering (Removal):

  * Apply premium non-corrosive RMA tacky BGA flux around PM8019.

  * Hot air station settings: 310°C – 320°C with 35% – 40% airflow.

  * Heat in small, focused concentric circles. As soon as the solder balls liquefy, lift the IC vertically

    with precision micro-tweezers. Never force or scrape.

- Pad Dressing & Cleaning:

  * Remove residual lead-free solder using copper desoldering braid and an iron tip set to 290°C – 300°C.

  * Clean thoroughly with 99% Isopropyl Alcohol (IPA) and verify under microscope for any lifted traces.

- Reballing Procedure:

  * Use a dedicated 0.12mm iPhone 6 / 6 Plus Baseband stencil.

  * Apply 183°C (Sn63/Pb37) leaded solder paste. Heat at 290°C until all 94 balls form perfect spheres.

- Installation:

  * Apply a microscope-thin film of flux to motherboard pads.

  * Align Pin 1 dot with the PCB corner white triangle mark. Reflow at 305°C – 315°C until the IC naturally

    self-centers onto its solder pads. Allow the board to cool for 5 minutes before applying power.

====================================================================================================
