77916-21 IC
Out of Stock

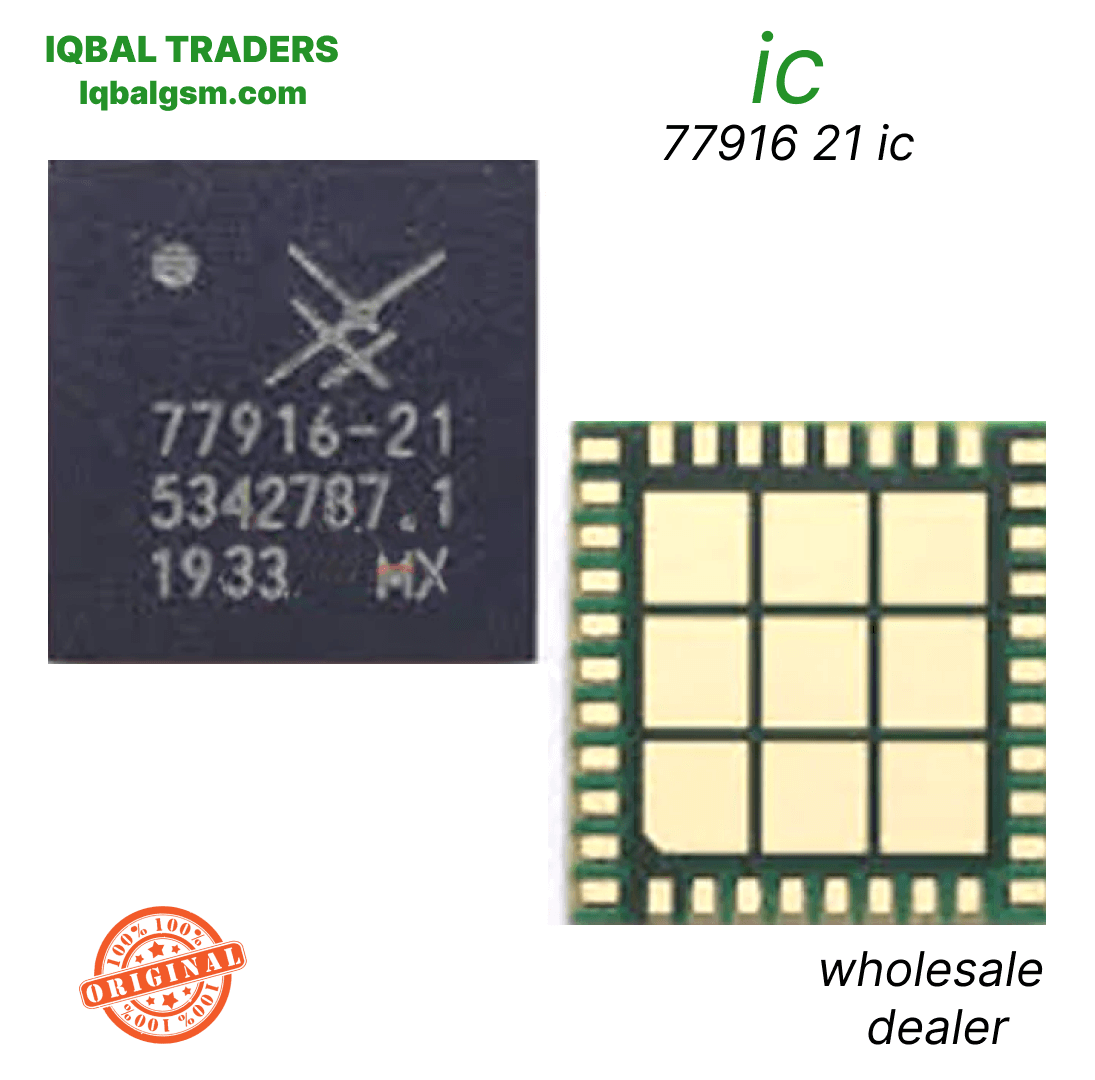

77916-21 IC

4.0 (12 reviews)

As low as

Rs 0.00

Worldwide shipping · Cash on Delivery

Quantity
Unit price Rs
Quantity
Total Rs
Ask on WhatsApp
Seller: Iqbal GSM

Product Details

1. ARCHITECTURAL & CIRCUIT OVERVIEW

The SKY77916-21 is a hybrid RF Front-End Module (FEM) integrating GaAs Heterojunction Bipolar Transistor (HBT) power amplifier blocks, a low-voltage silicon CMOS controller, and a high-isolation pHEMT antenna switch matrix. It provides 14 linear TRx switch ports designed with 0V DC offset (eliminating external DC-blocking capacitors) and internal 50-ohm impedance matching networks on all RF terminals. Operating power is supplied directly from the primary battery rail (VBAT/VPA) alongside a regulated 1.8V VIO rail for the MIPI RFFE digital control bus.

2. HARDWARE DIAGNOSTICS & FAULT ISOLATION

A. Cold Diode Mode Testing (Multimeter in Diode Mode, Red probe on Ground, Black probe on test point):

   - Locate the large RF decoupling capacitors adjacent to the SKY77916-21 on the VBAT/VPA line:

     * Normal forward voltage drop: ~0.350V - 0.460V.

     * Direct short (< 0.050V): Confirms internal dielectric punch-through of the GaAs PA output stage to the substrate ground.

   - Probe the MIPI RFFE clock and data lines (RFFE_SCLK, RFFE_SDATA) and the VIO (1.8V) supply rail:

     * Normal forward voltage drop: ~0.400V - 0.550V.

     * Open circuit (OL) indicates fractured LGA solder pads or severed board traces; a reading near 0.00V indicates a shorted CMOS control bus.

B. Hot Testing (Connected to Regulated DC Bench Power Supply set to 4.0V, 2.5A limit):

   - Standby Current: Before pressing the power button, observe the current meter. An undamaged board draws 0.000A. A damaged/leaking 77916-21 typically draws between 70mA and 350mA without power trigger.

   - Active Call Testing: Power on the device and initiate an emergency call (*#112 / *#911). If current spikes abruptly above 1.8A followed by immediate shutdown, battery disconnect, or system freeze, the PA is internally shorting under transmit envelope modulation.

3. THERMAL MANAGEMENT & SURROUNDING PROTECTION

- The SKY77916-21 utilizes a sensitive multi-layer organic laminate substrate encapsulated in plastic resin. Excessive thermal dwell time can cause internal delamination, PCB blister formation, or internal bonding failure.

- Critical Adjacent Components: On OPPO R11 and Meizu MX5 boards, the Qualcomm WTR / MediaTek RF transceiver, 19.2MHz/26MHz TCXO crystal oscillator, eMMC/UFS flash memory, and plastic SIM card trays are situated within 5mm to 12mm of the PA.

- Thermal Masking: Apply two layers of polyimide (Kapton) tape over adjacent components, covered with a layer of aluminum foil or a copper coin to shield surrounding silicon and prevent thermal drift in the reference clock.

4. STEP-BY-STEP REWORK PROTOCOL

A. Desoldering / Removal:

   - Apply a small amount of high-grade tacky no-clean RMA/BGA flux (e.g., Amtech NC-559 or Kingbo RMA-218) along the periphery of the chip.

   - Hot Air Rework Station Settings: 330°C - 350°C (depending on station thermal transfer efficiency, 6mm - 7mm nozzle) with 40-50% airflow.

   - Pre-heat the entire RF zone from a distance of 4cm - 5cm for 25-30 seconds to bring local PCB temperature to ~150°C.

   - Focus heat vertically over the outer perimeter of the SKY77916-21 in small, steady rectangular motions.

   - Test solder melt status on adjacent passive capacitors with curved micro-tweezers. Once solder reaches liquidus (around 217°C for factory lead-free alloy), gently lift the IC straight upward. Never slide, tilt, or pry cold pads.

B. Motherboard Pad Dressing:

   - Apply fresh flux to the PCB footprint.

   - Using a knife or hoof soldering iron tip at 320°C and clean copper desoldering wick, gently absorb residual lead-free solder. Keep the tip flat to avoid scratching solder mask bridges between the tightly spaced 38 LGA pads.

   - Clean the area thoroughly with 99.9% anhydrous Isopropyl Alcohol (IPA) and an ESD brush. Inspect under microscope to ensure zero lifted pads, exposed copper ground vias, or burnt flux residue.

C. Reballing / Stenciling:

   - Use a dedicated 77916 stencil or a universal 0.35mm - 0.40mm LGA/BGA stencil.

   - Recommended Solder Alloy: Medium-temperature leaded paste (Sn63/Pb37, melting point 183°C) for maximum mechanical flexibility and reliability under field thermal cycling.

   - Spread paste evenly across all 38 apertures using a squeegee, wipe off excess paste, hold stencil flat, and reflow at 260°C - 280°C with low airflow (15-20%).

   - Allow to cool, release stencil, and verify uniform solder ball height under microscope.

D. Resoldering & Alignment:

   - Coat the motherboard footprint with an ultra-thin film of tacky flux (excess flux will cause the lightweight LGA package to float or drift).

   - Align Pin 1 orientation index (chamfered edge / laser dot marker) precisely with the PCB silkscreen reference mark.

   - Apply hot air vertically at 320°C - 330°C with 30-35% airflow directly above the chip.

   - Observe solder reflow: The surface tension of molten solder will pull the IC into central alignment ("self-centering").

   - Perform a micro-nudge test with tweezers: touch the corner gently; if it springs back instantly into alignment, reflow is complete.

   - Remove heat immediately and allow natural cooling for 90 seconds without moving the board.

5. POST-REWORK VERIFICATION

- Measure resistance and diode mode value on the VBAT decoupling capacitors to confirm zero solder bridges to ground.

- Clean residual flux using an ESD brush with IPA.

- Connect cellular coaxial antenna cables and inspect RF grounding clip contacts to the chassis.

- Insert an active SIM card, power up the handset, and dial *#*#4636#*#* to access the Phone Information engineering menu.

- Verify RSRP / RSSI signal levels, test 2G/3G/4G registration, perform a test voice call, and run a cellular data throughput test to confirm sustained RF transmit/receive performance.
