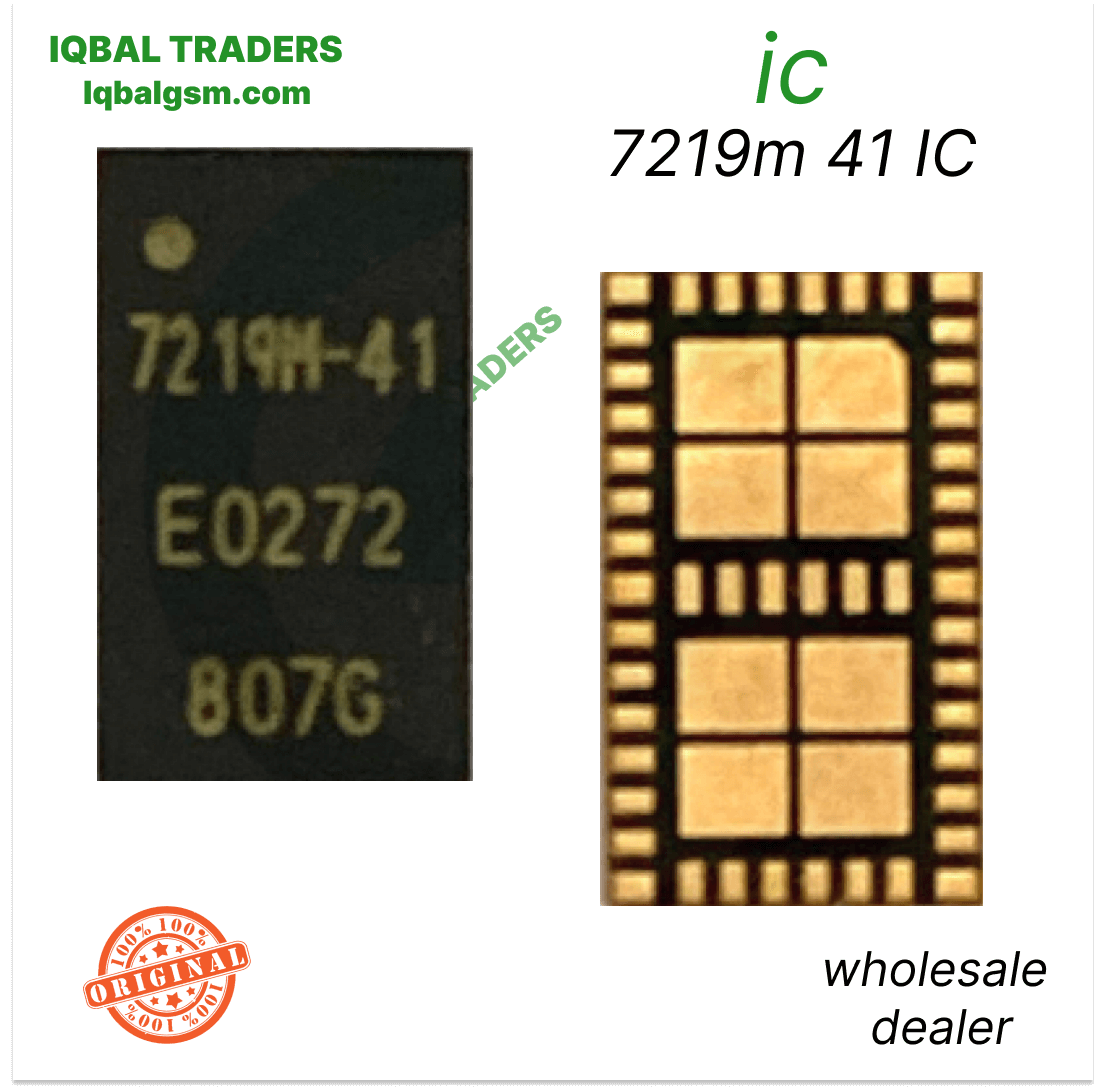

7219M-41 IC

4.0 (12 reviews)

As low as

Rs 280.00

Worldwide shipping · Cash on Delivery

Quantity
Unit price Rs
Quantity
Total Rs
Ask on WhatsApp
Seller: Iqbal GSM

Product Details

--------------------------------------------------------------------------------

SECTION 1: FUNCTIONAL ARCHITECTURE & CIRCUIT ROLE

--------------------------------------------------------------------------------

1. RF Transmission Front-End (RFFE):

   - Multi-Band Transmission: Amplifies uplink cellular signals across Mid-Band and High-Band LTE channels (e.g., Band 1, Band 3, Band 5, Band 8, Band 40, Band 41) prior to antenna duplexing.

   - High-Current Direct Bus Feed: Connects directly to VPH_PWR / VBAT through low-ESR ceramic filter capacitors and external choke coils to deliver instantaneous transmission burst currents.

   - Digital Control Interface: Synchronous MIPI RFFE serial bus (VIO 1.8V, SCLK, SDATA) communicating directly with the baseband transceiver to set transmission power levels, active frequency paths, and power-saving modes.

2. Typical Schematic Labels:

   - Designated on schematics as U_PA, U_MBHB_PA, or U2201 in Borneo Schematics, Wuxinji, and XinZhiZao bitmap applications.

--------------------------------------------------------------------------------

SECTION 2: BOARD-LEVEL FAULT SYMPTOMS

--------------------------------------------------------------------------------

1. No Service / Permanent 0 dBm Signal:

   - Device displays carrier name or SIM card prompt, but fails to maintain network bars or displays a red cross icon.

   - Cause: Punctured internal gallium-arsenide/silicon amplifier stages or cold-soldered RF TX output pads.

2. Outgoing Call Collapse & Instant Power-Off:

   - Phone functions normally during idle standby or Wi-Fi browsing, but making a phone call causes an instant reboot or power cut.

   - Cause: Defective internal PA bias draws excessive current during TX peak, collapsing the VPH_PWR rail below the PMIC under-voltage threshold.

3. Logic Board Direct Short Circuit (Dead Phone):

   - Internal breakdown connects the high-voltage battery supply (VPH_PWR) directly to ground.

   - Result: 0.000V in diode mode; DC bench power supply immediately hits max current (1.5A to 3.0A) before power key prompt.

4. Thermal Buildup & Battery Drain:

   - Battery drains completely within a few hours while the phone is idling, accompanied by noticeable heat radiating from under the RF metal shield.

--------------------------------------------------------------------------------

SECTION 3: STEP-BY-STEP MULTIMETER TESTING & DIAGNOSTICS

--------------------------------------------------------------------------------

1. Cold Testing (Diode Mode Drop Readings in mV):

   - Place RED multimeter probe on motherboard ground (GND shield), probe peripheral capacitors surrounding 7219M-41 with BLACK probe:

     * VPH_PWR Input Capacitors: ~350 mV to 450 mV (0.000V indicates blown PA or damaged bypass capacitor).

     * MIPI RFFE Clock (SCLK): ~400 mV to 550 mV.

     * MIPI RFFE Data (SDATA): ~400 mV to 550 mV.

     * VIO 1.8V Supply Rail: ~450 mV to 550 mV.

     * RF Output Line: ~300 mV to 400 mV.

2. Hot Voltage Testing (During Network Search / Outgoing Call Attempt):

   - VPH_PWR Line: Must read stable 3.7V - 4.2V DC without dipping below 3.3V.

   - MIPI VIO Line: Must read steady 1.8V DC.

   - Thermal Camera / Rosin Method: If VPH_PWR is shorted, apply 3.8V 2A; a defective 7219M-41 will instantly melt rosin smoke or register as a bright thermal hotspot.

--------------------------------------------------------------------------------

SECTION 4: SOLDERING & REWORK SPECIFICATIONS

--------------------------------------------------------------------------------

1. Shield Removal:

   - Carefully desolder or cut the RF shield frame without flexing the motherboard PCB to prevent internal track fractures.

   - Mask the neighboring CPU, eMMC/UFS memory, and baseband transceiver with polyimide (Kapton) tape and thick aluminum heatsink foil.

2. Desoldering 7219M-41:

   - Dispense no-clean tacky flux (Amtech NC-559-V2-TF) around the perimeter.

   - Hot Air Station: 340°C - 350°C, 30% airflow with a 4.0mm straight nozzle.

   - Heat in a smooth, continuous circular motion for 12-16 seconds; lift vertically with fine-tipped micro-tweezers once all solder pads liquefy.

3. PCB Pad Dressing:

   - Apply a small bead of Sn63/Pb37 leaded solder to combine with the factory alloy on the PCB pads.

   - Use 0.8mm desoldering copper braid with a 320°C knife tip to level all LGA pads completely flat.

   - Clean the area thoroughly with 99.9% pure Isopropyl Alcohol (IPA) and verify under stereo microscope for zero bridges on ground pads.

4. Soldering New 7219M-41 IC:

   - Pre-tinned chips from factory tape reels can be installed directly. If reballing, use a universal LGA/PA stencil with 183°C medium-temperature solder paste.

   - Smear a microscopic flux layer across the motherboard footprint.

   - Align the Pin 1 orientation dot on the chip surface with the motherboard silkscreen white dot.

   - Solder at 320°C - 330°C with 25% airflow. The chip will automatically seat into center alignment via surface tension; confirm solder liquidity with a gentle tweezer tap.

   - Allow board to cool naturally for 2 minutes, clean with IPA, reconnect RF coaxial antenna cables, insert a working SIM, and confirm restored 4G LTE signal bars and call stability.
