RF4 RF-S110 RF-S210 RF-S310 Smart BGA Soldering Station
RF4 RF-S110 RF-S210 RF-S310 Features:
1. Temperature memory channel switching: CH1 channel default temperature is 320°C, CH2 channel default temperature is 350°C, CH3 channel default temperature is 380°C.
2. Advanced temperature control system to ensure accurate and stable heating.
3. With fast temperature adjustment function and anti-static performance, it can improve safety and performance.
4. Fast heating: The soldering station has fast heating ability, which can greatly reduce the waiting time before use.
5. Fast temperature recovery, with three-speed memory storage function, it can quickly switch to the required temperature level at different times or scenes to improve work efficiency.

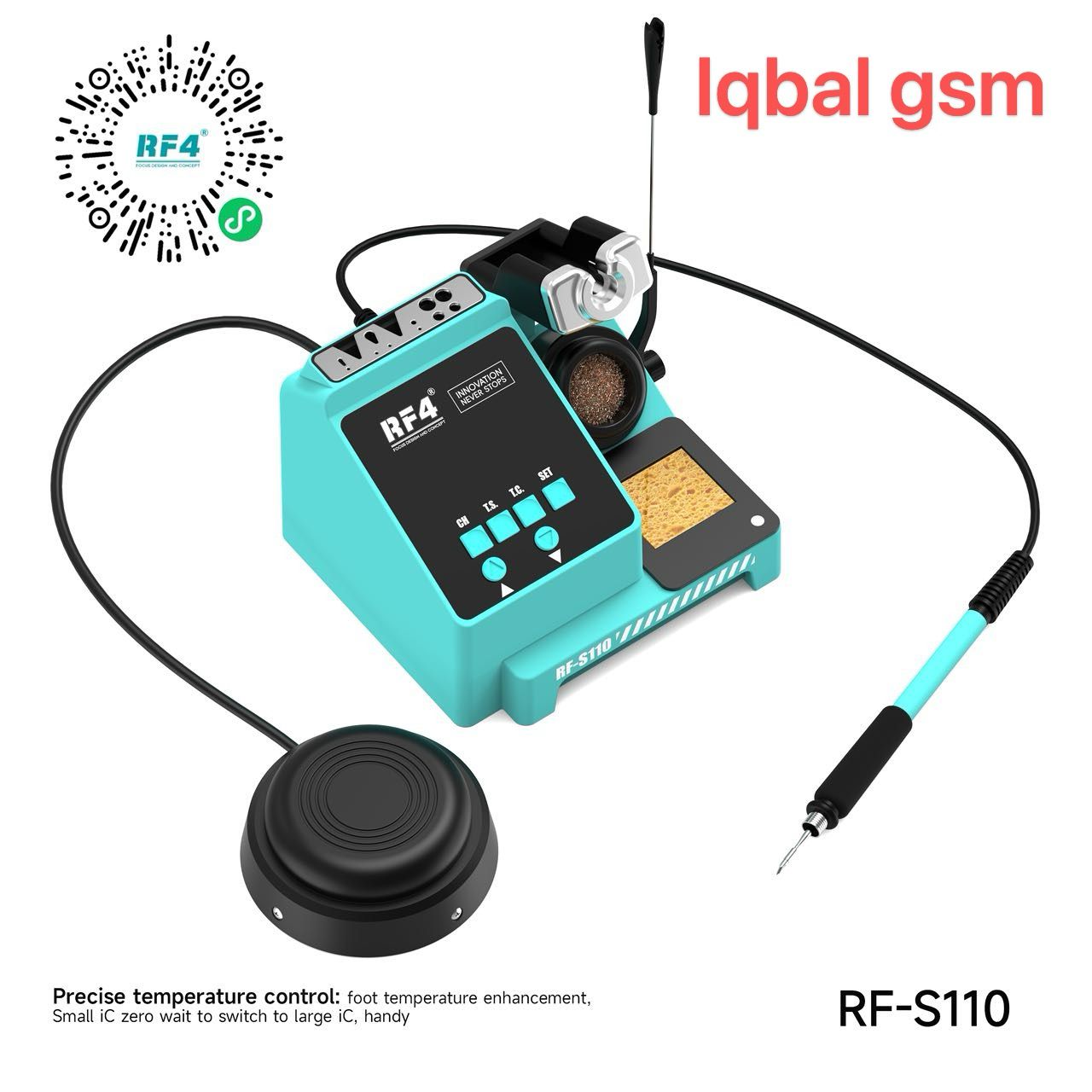

RF-S110 Features:
1. With pedal activation switch, it can heat instantly and is easy to operate. The pedal temperature is enhanced, and the temperature rises with a light step, which is faster for welding panels with fast heat dissipation.
2. RF-S110 is equipped with an independently developed “TCP” temperature control system to ensure accurate and stable temperature settings.
RF-S110 Parameters:
Model: RF-S110.
Voltage: 220VAC (110VAC).
Power: 300W.
Temperature Range: 200°C-450°C.
Tip of Soldering lron: 210 soldering tip.
Constant Temperature Accuracy: ±3°C.
Sleep Function: Inductive standby.
Memory Channel: Three.
Net Weight: 905G.
Host Size: 154*143*123MM.

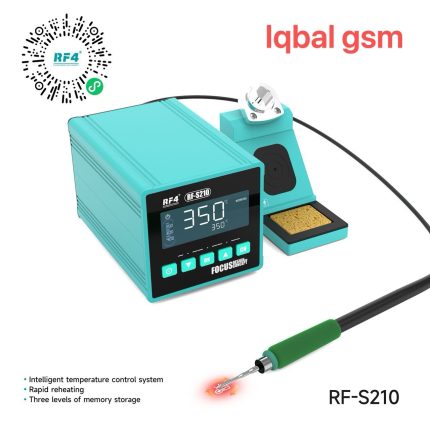

RF-S210 Parameters:
Model: RF-S210.
Voltage: 220VAC (110VAC).
Power: 72W.
Temperature Range: 100°C-500°C.
Tip of Soldering lron: 210 soldering tip.
Constant Temperature Accuracy: ±5°C.
Sleep Function: Inductive standby.
Memory Channel: Three.
Net Weight: 985G.
Host Size: 144*96*90MM.
RF-S310 Parameters:
Model: RFS310.
Voltage: 220VAC (110VAC).
Power: 75W.
Temperature Range: 150°C-480°C.
