ShortCam II Infrared Thermal Imager for PCB Leakage Repair

₨ 94,000

Compare
Add to wishlist
Categories: , ,
Description

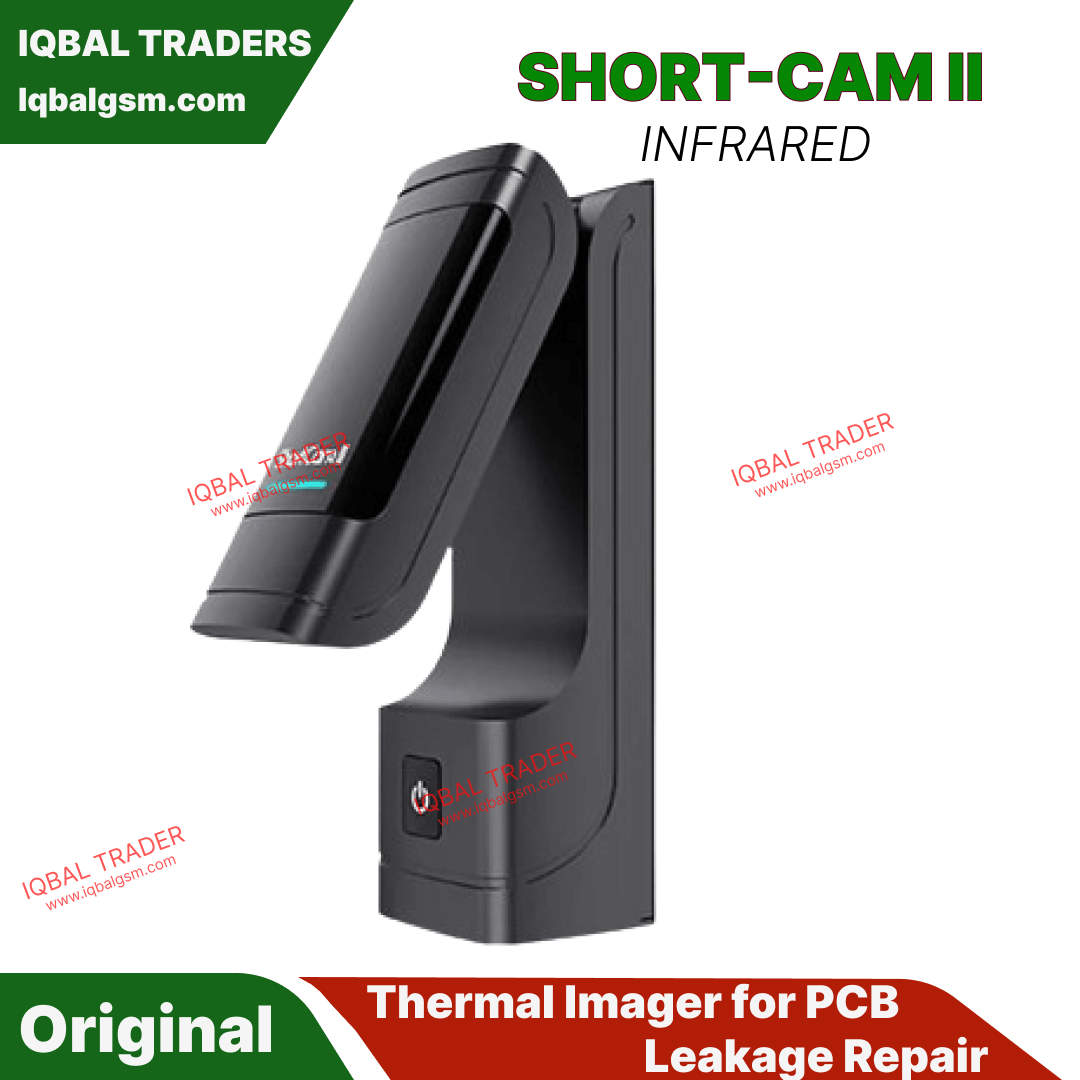

ShortCam II Infrared Thermal Imager for PCB Leakage Repair
LINCSEEK ShortCam II Infrared thermal imaging camera detects any error or fault in the motherboard of phones, tablets, laptops, smartwatches, and other electronic devices.

*From now on, buy one LINCSEEK ShortCam II and get 493 POINTS, 50 Points=$1.

Functions

Phone motherboard repairing
Computer motherboard fixing
Smartwatches maintenance
Hardware data code restoring

Features

Upgraded thermal imaging resolution
Increased visible light pixel
High contrast display
High-temperature real-time tracking
A one-click for leakage check
Accurate fault location
Detail flexible zoom-in, easier to find tiny chips
Stylish appearance and ultra-small size
Folding design for convenient storage and use

Specification

Brand: LINCSEEK
Model: ShortCam II
Name: Portable Infrared Thermal
Imaging Camera
Power Port: USB Type-C
Image Display Form: JPEG
Video Storage Form: MP4
Size: 48*48*154mm
Weight: 500g
Imager Pixel: 400W
Output Power/Voltage: 5V DC/2.5W
Thermal Resolution: 256*192HD
Visible Light Resolution: 2568H*1448V
Wavelength Range: 8~14μm
Camera Angle: 25°*18°
Storage Temperature: -20~60℃
Operation Temperature: 3~45℃
Temperature Measurement Range: -20~550℃
Temperature Measurement Distance: 13cm
